Our well-known 10-inch XCN-1050 display for retrofitting almost all brands has received an upgrade and has been replaced by its successor, the XCN-1060.
What’s new in a nutshell?
Faster processor.
Greater memory.
More storage capacity.
The new XCN-1060 display is compatible with the proven steering types:

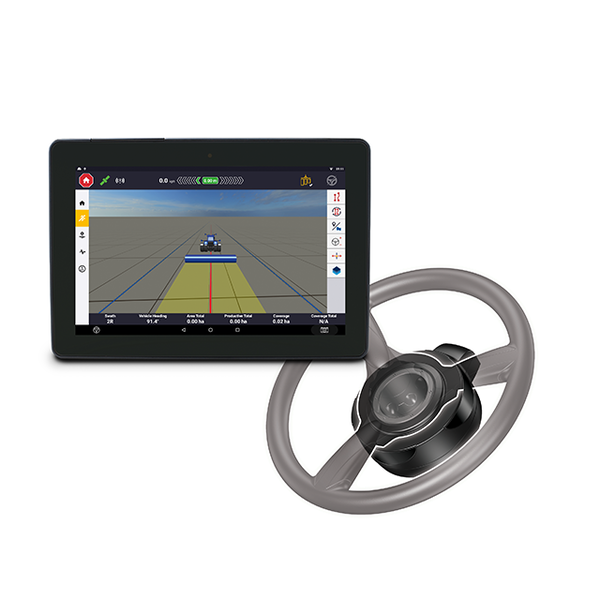

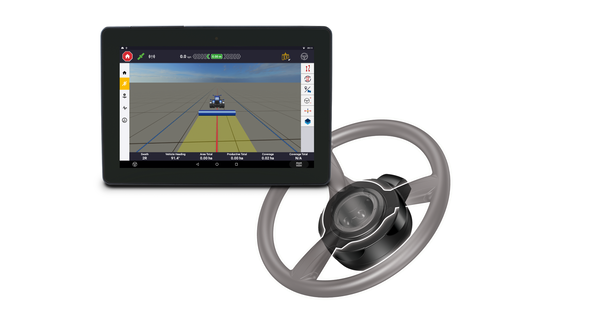

XCN-1060 with EZ-Pilot PRO
The EZ-Pilot® Pro guidance system offers high accuracy guidance across many vehicle types and brands at an affordable price. Combining EZ-Pilot Pro simplicity with the NAV-900 or NAV-500 guidance controller results in an easy to-install assisted steering option for your vehicle with up to 1.5 cm accuracy.
XCN-1060 with Autopilot Motor Drive
Autopilot Motor Drive is an electric, hands-free, automated steering system that delivers highly accurate, Autopilot-level steering with the ease of installation of the EZ-Pilot® system. No matter your vehicle type or brand, the Autopilot Motor Drive system can be quickly transferred from one vehicle to another.

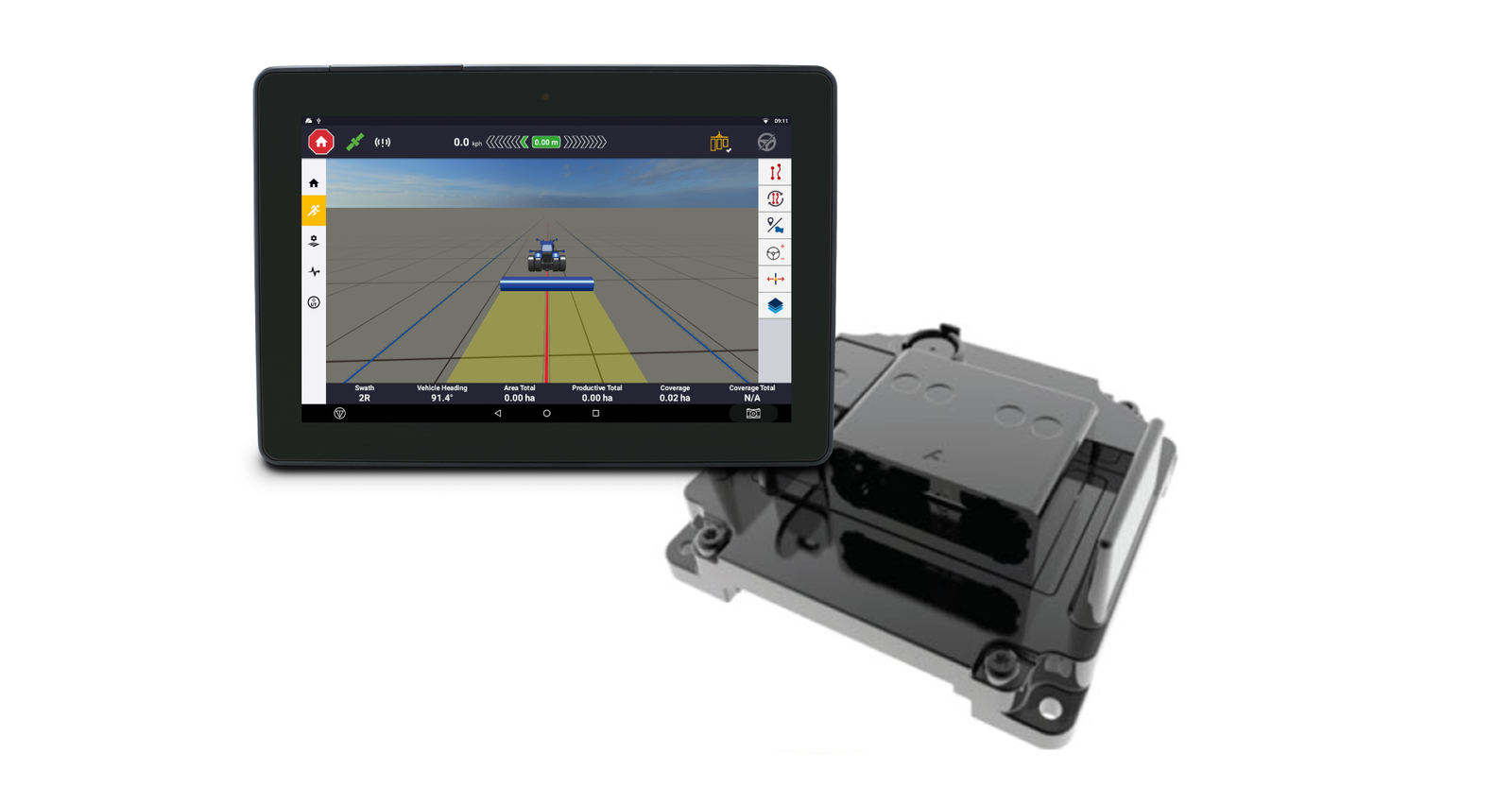

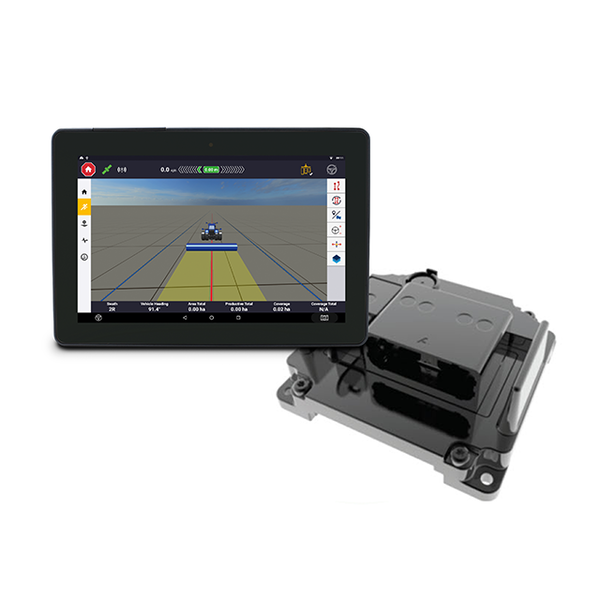

XCN-1060 with Autopilot
(with VDM-912)
Autopilot, directly integrated into your vehicle's hydraulics, automatically steers your vehicle on-line with maximum precision. When your vehicle gets offline, Autopilot signals it to adjust its position to follow the correct path, no matter the field pattern or terrain type - so you can focus on the job ahead of you.
| EZ-PilotTM Pro | AutoPilotTM Motor Drive | AutoPilotTM | |
|---|---|---|---|
| Guidance type | Assisted Steering | Assisted Steering | Hydraulic Steering |
| Compatible machines | Compatible with platform kits for more than 200 machines | Machine equipped with CAN and non CAN based factory integrated hydraulic steering valves | |
| Guidance controller | NAV-500 or NAV-900 | NAV-900 | NAV-900 |
| Low speed | 1.61 km/h | 0.35 km/h | 0.35 km/h (0.07 km/h with additional hardware |
| Angle (approach) | 45° | 90° | 90° |
| Reverse operation | Yes (15 sec.) | Yes | Yes |
| Stay engaged when stopped | Yes (15 sec.) | Yes | Yes |
| NextSwath (end of row turn capability) | No | Yes | Yes |
